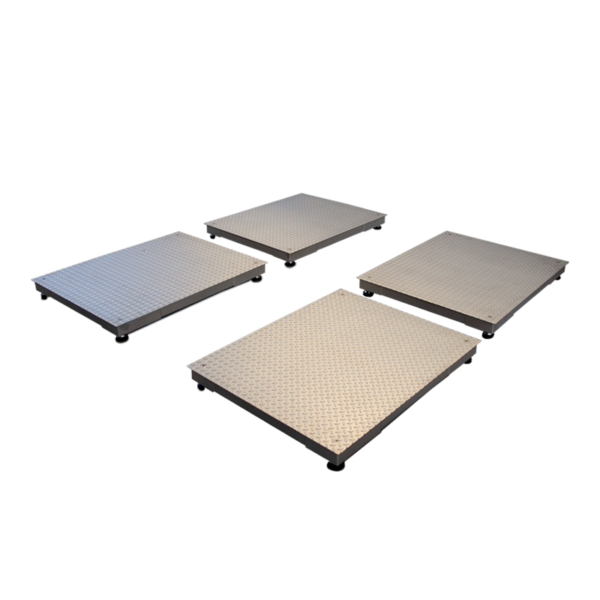

Electronic scale with 4 Load Cells for iron weighing

4-CELL LOADING ELECTRONIC PLATFORM complete with No. 4 adjustable support feet.

TO BE PLACED WIRED OR ABOVE FLOOR

  • VARNISHED VERSION
  • Extremely sturdy one-piece tubular steel structure with fixed sheet steel loading surface.
  • Smooth non-slip cover plate; anthracite powder coated surface.
  • Junction box complete with connecting cable.
  • Self-aligning non-slip support feet.
  • Sight-holding column: on request (option)
  • Ramps up/down for above-floor version: on request (option)
  • Metal crowning edge for flush-floor version on request: (option) BFP4V
  • All-stainless steel platform: on request. (option) BFP4X

Dimensions and capacities available.

Code
Size m
Scope
Division
BSP4V100
100X100
600/1500KG
200/500 g
BSP4V125
125X125
600/1500KG
200/500 g
BSP4V150
125X150
1500/3000KG
500/1000 g
BSP4V1515
150X150
1500/3000 kg
500/1000 g
BSP4V1020
100X200
1-3-5-10 T
1/5/10kg
BSP4V1520
150X200
1-3-5-10 T
1/5/10kg
BSP4V2020
200X200
1-3-5-10 T
1/5/10kg
BSP4V2030
200X300
1-3-5-10 T
1/5/10kg

Other dimensions and capacities on request. Connectable to simple weight display (mod. GS25B) or Touch Screen display (DEC 59) with dedicated program “Program 16” and roll printer.
